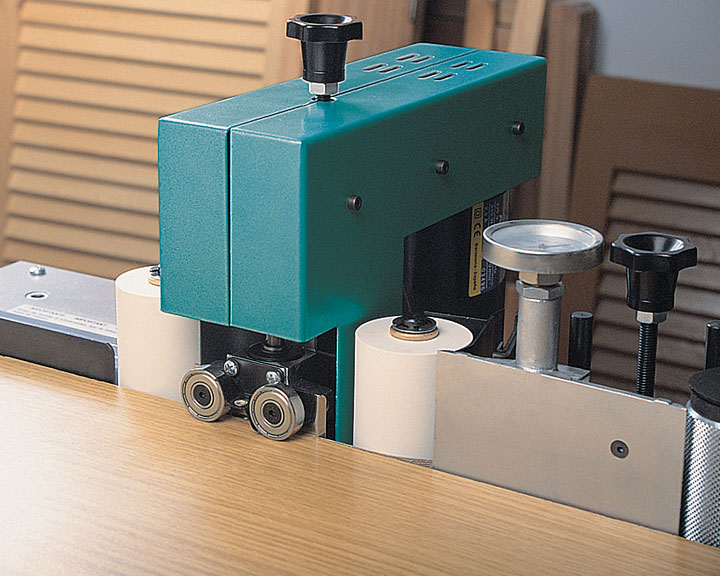

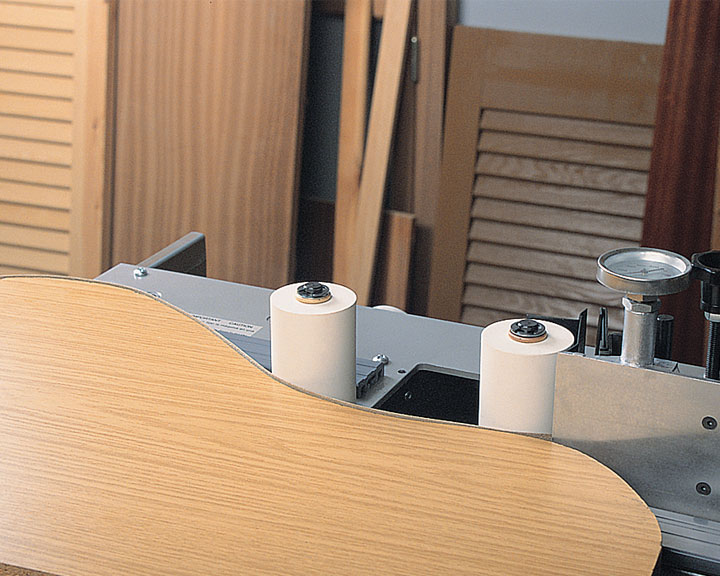

Edgebander EB10C <p>Power trimming station: Trimming strip on both sides simultaneously.</p> <p>Electronic temperature regulation.</p> <p>Banding curved workpieces.</p>

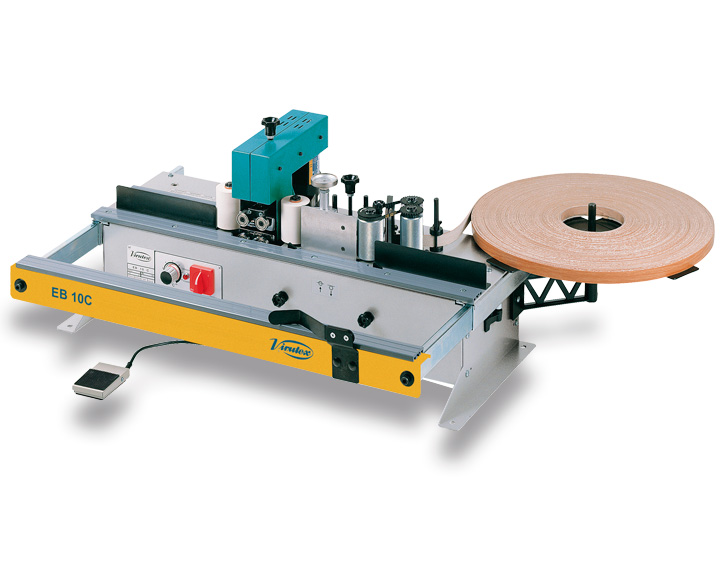

Edgebander EB10C
360º
Hold down the left mouse button and move left or right to rotate the image.

EB10C

Edgebander



CE
Capacitor

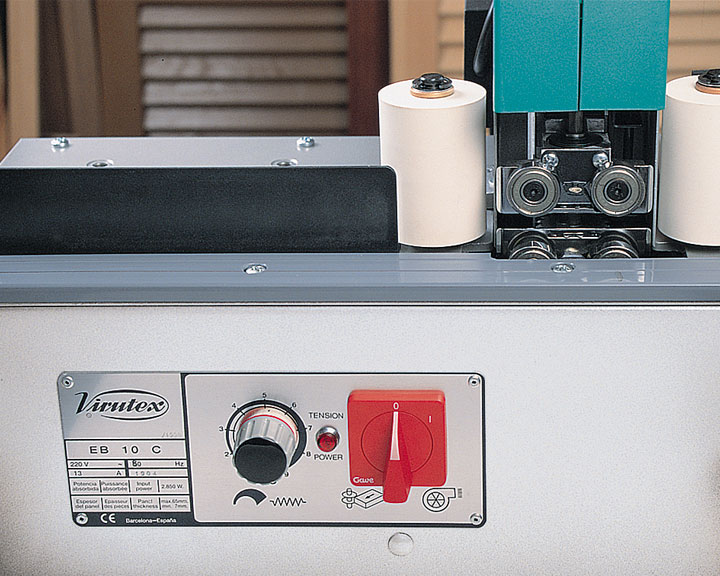

Electronic temperature control
Reversible knives




For panel edgebanding with preglued PVC, melamine and veneer. Powerful hot air system with electronic temperature control. Automatic end trimming. Rapid heat up time (2min.). No compressed air or dust collector required. Equipped with motorized trimming unit on both sides.



Standard equipment

Foot pedal for rear end trim for curved pieces AK97NW Motorized trimming unit

Input power:
2.850 W
Min. edging thickness:
7 mm
Max. edging thickness:
65 mm
Electronic temp. Control:
0-500°C
Voltage (1-ph):
200-50 V-Hz
Dimensions:
600 x 950 x 430 mm
Weight:
35 Kg

5045753 SFV50 Vacuum table 6399082 Cantspray 6045710 Set of 2 clamps 2100000 RC21E Manual end trimmer 2100600 RC221R Hand end trimmer (for 2 mm PVC tapes) 2800000 AU93 Double edge trimmer 5600050 Head CA56G
